WHY CHOOSE A SOLAR BLANKET

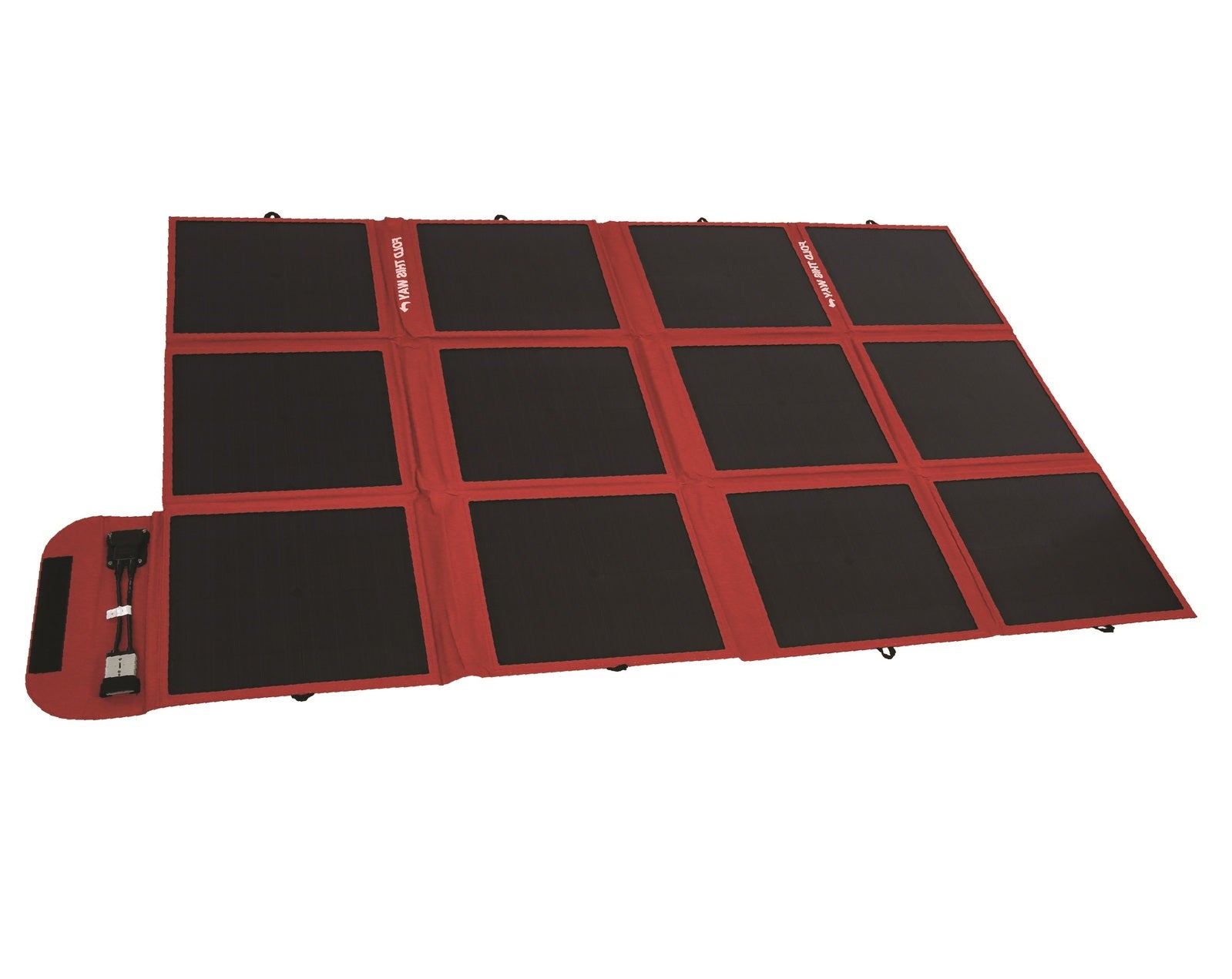

12 Volt Direct's portable solar blankets are lightweight, compact and versatile making the ultimate portable power solution.

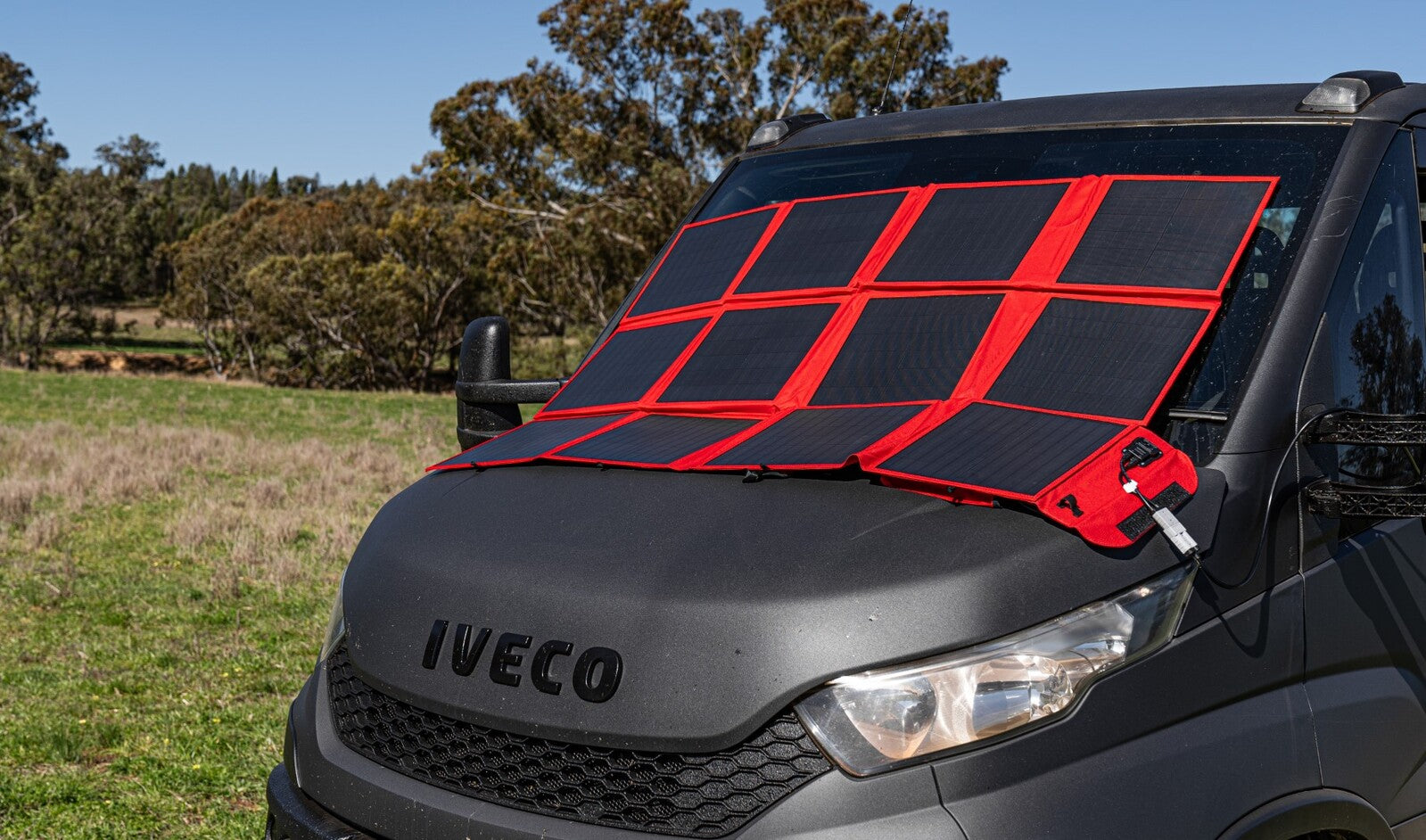

Our blankets are built tough to handle harsh Australian conditions and are designed for a quick and painless setup. Simply unclip the straps, unfold and place in the sun!
The included charge controller ensures that your battery is charged with maximum efficiency and charging will automatically stop when the battery is full.
Solar blankets are the ideal solution to maintain your battery when using 12v lighting, 12v fridges, tv’s, and other camping equipment.
CHARGING SETUP
Our solar blankets are supplied with a PWM solar regulator, this regulates the solar energy collected by the panel to the optimal voltage for charging your battery and prevents the battery from being overcharged.

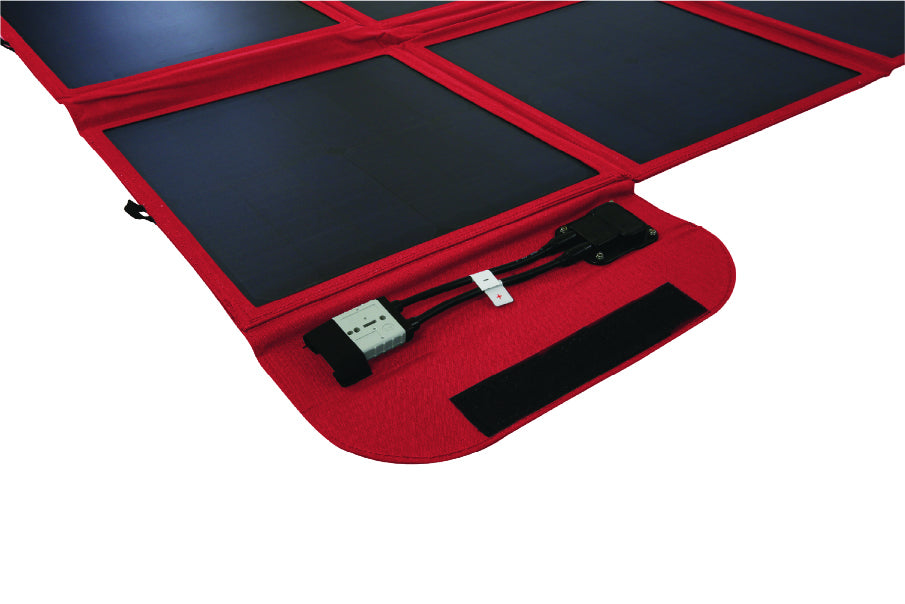

The solar panel, regulator, and accessories are fitted with Anderson style plugs to provide a plug & play solution. This also allows the regulator to easily be bypassed if you choose to use the solar blanket with an existing charge controller, DC to DC charger, or battery management system. Anderson style connectors add to the versatility and adaptability of your setup so you won’t have to source any proprietary Or uncommon plugs in the future.

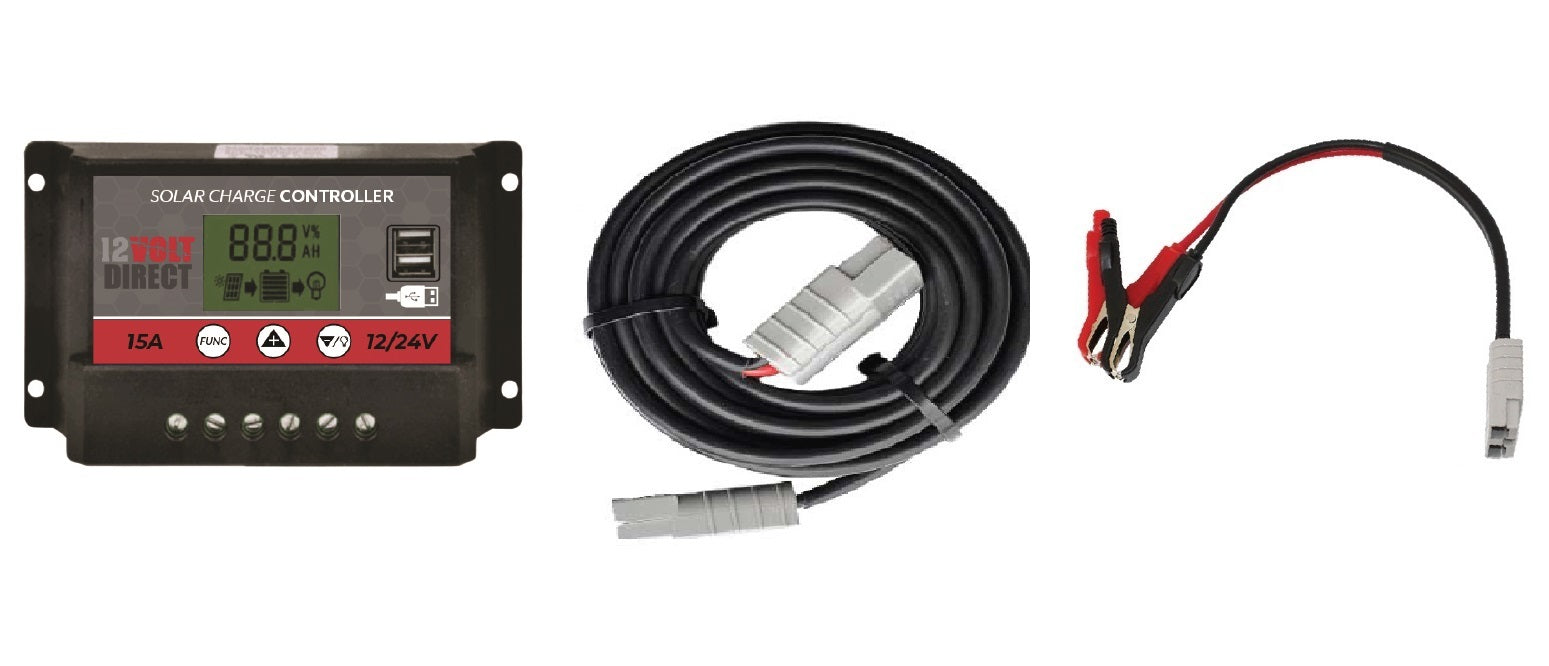

WHAT'S INCLUDED

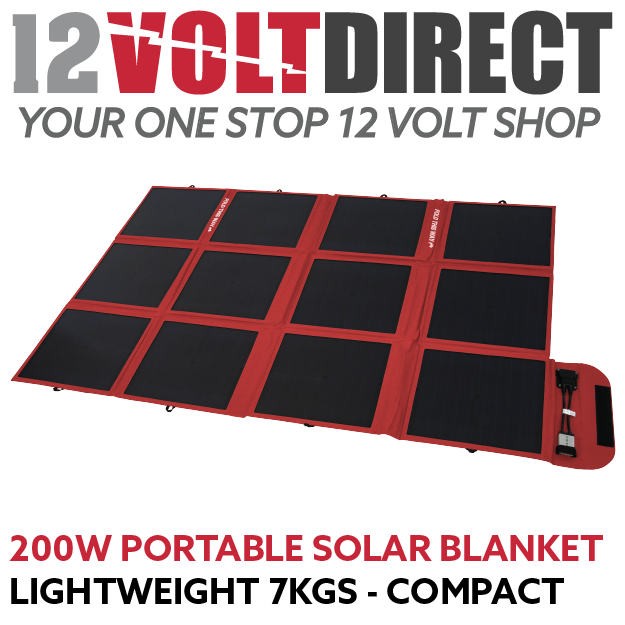

200W Solar Blanket
- PWM Regulator
- 5M Anderson Style Extension Cord
- Aligator clip adapter
SPECIFICATIONS
| CELL TYPE | A-Grade Mono-crystalline | |
| WORKING VOLTAGE | 18.8V | |
| WORKING CURRENT | 10.68A | |
| OPEN CIRCUIT (V) | 22.8V | |
| SHORT CIRCUIT (A) | 11.47A | |

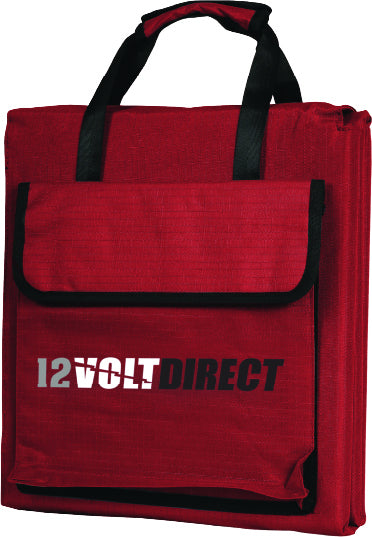

| FOLDED SIZE | 350 X 375 X 70MM | |
| UNFOLDED SIZE | 1545 X 1010MM | |
| OPERATING TEMP | -40°C - 85°C | |
| WEIGHT | 7.0KG |
