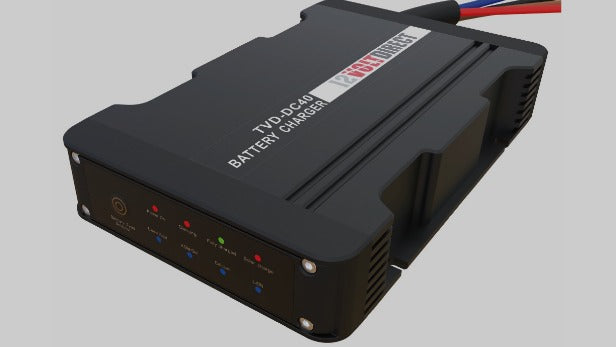

Model: TVDDC-40
-
Type: Multi Stage DC to DC
-
Input: DC Battery: 13.2-16.0 Volts Solar Input: 16.0-25.0 Volts
-
Output/Charging Voltage: 13.5-15.4 Volts(Stops charging when alternator output or vehicle battery below 13.0 volts)
-
Output Current: 40AMP
-
Minimum Start Voltage: 2.0 Volts-For battery being charged
-
Soft Start: Yes
-
Soft Charge Current: TVDDC40@40A
-
Bulk Charge Voltage: 14.7V(AGM/Gel)14.4V(Lead Acid)15.4V(Calcium)14.4V(LiON)
-
Absorption: Constant voltage with automatic amperage control
-
Equalisation: Automatic
-
Float Charge Voltage: 13.5V(AGM/Gel)13.5V(Lead Acid)13.5V(Calcium)
-
Float Charge Current: 100mA
-
Battery Range: 18 to 250Ah
-
0-1 Metres Cable: 12AWG
-
1-5 Metres Cable: 8 AWG
-
5 Metres Cable: 6 AWG
