Key Features & Specifications:
590mm / 740mm
Options of Black or Galvinised Steel

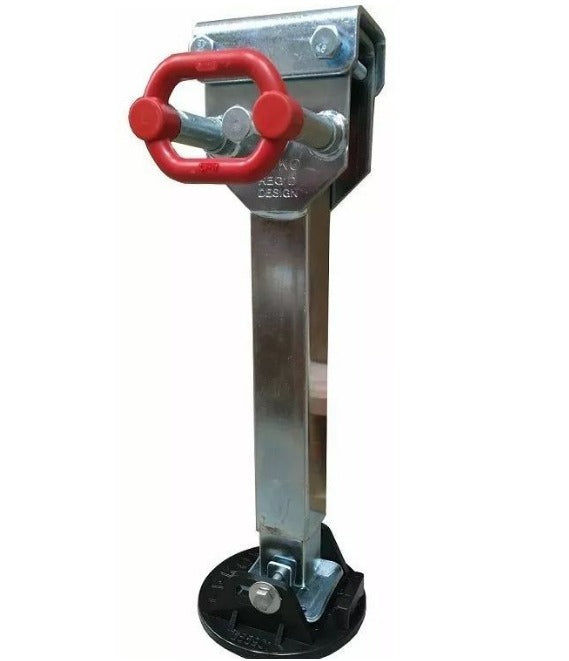

When rigid stability is required, the AL-KO range of corner steadies fits the bill. Available in varying heights and also in weld-on swivel bracket versions. These steady stands are ideal for fixed location stabilizing of trailers and plant equipment.
The ”drop-down” corner steady requires only a small amount of lowering to steady the caravan and can be swung from the horizontal travelling position to a number of different angles, including the optimum vertical position.
Advantages:
Swing up storage
Ergonomic handle grips
AL-KO Bigfoot compatible
Smooth, reliable crank
Spare parts available
Important: Corner steadies are not designed to be used as a jack or to lift the trailer or caravan off the ground. They are only designed to stabilize the trailer or caravan when stationary.
AL-KO does not approve the use of electrical devices to actuate corner steadies. Use only AL-KO Hex Drive Handle to lower and raise AL-KO corner steadies.
590mm - ON ROAD RV's
- 590mm version is suitable for most On-Road RVs
- Includes fitted Alko Bigfoot
- Zinc plated
- 590mm in Height fully extended (Bigfoot Included)
- 420mm minimum vertical height (Bigfoot Included)
- Leg operates at various angles allowing for smaller height
- Stowed height is 125mm
- Mounting bracket included for chassis installation.
- Bolt on installation for legs to mounting bracket for easy changeover (Two Bolt Hole 80 mm Centres – Leg Top Section Measures L 100 mm x W 65 mm)
- 19-mm standard hex wind nut
- Features smooth grip handle for comfort
740mm - OFF ROAD RV's
ALKO Corner Steadies are designed to stabilize a trailer or caravan when stationary. This zinc plated 740mm drop down corner steady has a hex drive and comes complete with a bigfoot making it ideal for softer ground. The Alko leg comes with a mounting plate which can be welded on allowing the corner steady unit to be then bolted to the bracket (with included bolts). This makes it easily removed & swapped over if required.
The "Drop-Down" style steadies can be swung from the horizontal travelling position to different angles including the optimum position of vertical. The corner steady then requires only a small amount of winding to steady the caravan, pop top or camper trailer. The minimum vertical height is 500mm although the steadies can be set down on an angle when local ground levels vary and don't allow full vertical extension. The maximum height is 740mm (Including the Big Foot & Mounting Bracket).
AL-KO corner steadies have been tested and meet the requirements of the Caravan Industry Association Australia (CIAA), the Australian controlling body for caravan manufacturing standards.
Key Features & Specifications:
- 740mm version is suitable for most Off-Road RVs
- Includes fitted Alko Bigfoot
- Zinc plated
- 740mm in Height fully extended (Bigfoot Included)
- 500mm minimum vertical height (Bigfoot Included)
- Leg operates at various angles allowing for smaller height
- Stowed height is 125mm
- Mounting bracket included for chassis installation.
- Bolt-on installation for legs to mounting bracket for easy changeover (Two Bolt Hole 80 mm Centres – Leg Top Section Measures L 100 mm x W 65 mm)
- 19-mm standard hex wind nut
- Features smooth grip handle for comfort
Notes:
- Corner steadies are not designed to be used as a jack or as the means of lifting the trailer or caravan off the ground. They are designed to stabilize the trailer or caravan when stationary.
- The 740mm sized unit generally suits off-road Caravans. For lower On-Road touring models, the 590mm version may be more suitable (but please measure to be sure).
