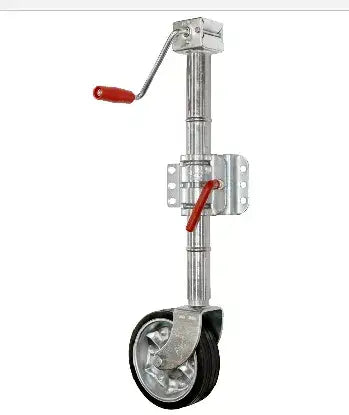

The new ALKO Premium 8” Side Wind Jockey Wheel is designed specifically for easy of use in tight locations where a normal top wind jockey wheel may not be suitable. It allows for unobstructed operation and the gearbox reduces the winding force required to raise the drawbar.
Product Description
Effortless Winding
Suitable for static loads of up to 400kg, the integrated gearbox fitted with an easy to access grease nipple reduces the winding force required to raise and lower the drawbar.
Extra Wide Clamp
The extra wide clamp supplied is most commonly welded directly to the drawbar but can be mounted using fixing bolts if preferred.
Fixing Points
The new jockey wheel features a multi-height, 4 ring design to allow multi position mounting using the included weld on/bolt on clamp.
Premium 8” Wheel
The jockey wheel is supplied with premium zinc plated steel wheels fitted with 8” x 2” solid rubber tyres making manoeuvring effortless.
Specifications
-
Static Load Capacity: 400kg
Fixing points: Multiple height – 4 ring design
Clamp: Extra wide weld on/bolt on
Finish: Zinc plated
Wheel: 200mm Metal with solid tyre
Min Height: 771mm
Max Height: 1037mm
Extensions: 266mm
